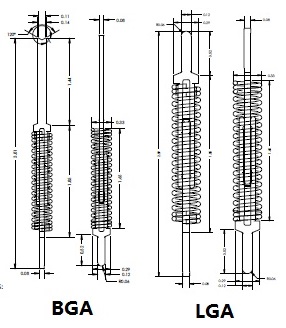

MECHANICAL PROPERTIES

Pitch: 0.40 mm(min)

Working Travel:0.40 mm

Contact Force: 14.3gf

Full Length:3.81mm

Compressed Length:2.91 mm

Operating Temperature:-55°Cto +180°C

Mechanical Life: 125,000 cycles

ELECTRICAL PROPERTIES

Contact Resistance: <50 mΩ

Current Rating (free air): 1.8 amp

Self Inductance: 0.75 nH

Capacitance: 0.067 pF

Bandwidth @ -1dB 10.0 GHz

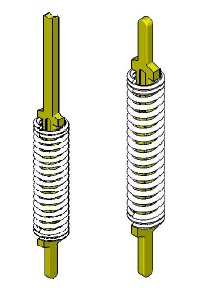

MATERIALS

Stamped Contact: BeCu, Au Plate

Spring: SS, Au Plate
